Factory Tube Diffuser AS-TD93 | 3"Fine Bubble Tube Diffuser Low Pressure Loss And High Aeration Efficiency | For Textile And Dyeing Wastewater Secondary Treatment
- Price
- US $8-10
- Model
- AS-TD93
- MOQ
- 100 piece
Item specifics
- Membrane Material
- EDPM, Rubber,Silica Gel
- Connector
- 3/4"NPT male thread
- Length
- 500/750/1000mm
Review
Description

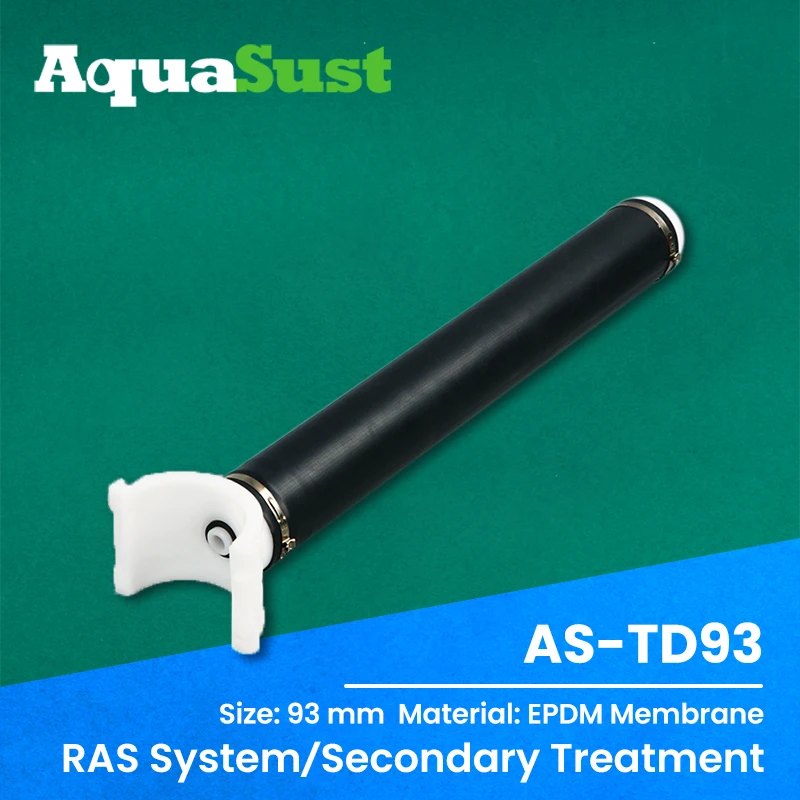

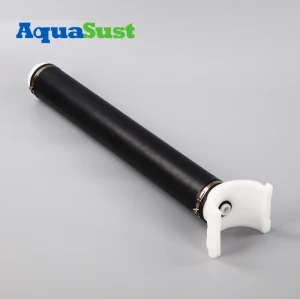

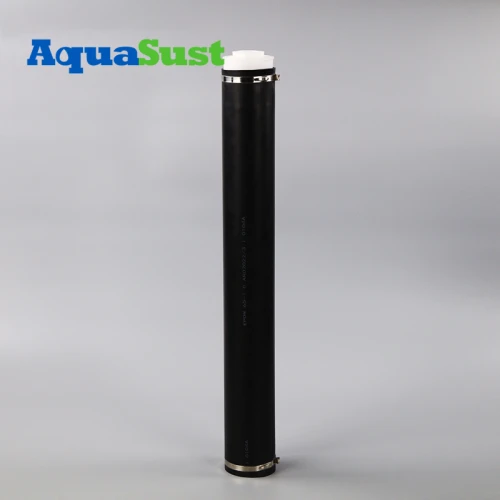

Tube Diffuser AS-TD93 Introduction
Category: Biochemical Tank -Aeration Diffuser
Brand: AquaSust
Model: AS-TD93
Size: 93mm
Bubble type: Fine bubble
Material: EDPM, Rubber, Silica Gel
Connector
:3/4NPT
Flow Range(m³/h)
:5-20
Bubble Size(mm)
:1-2
Service Area
:1.0-3.0
Tube Diffuser AS-TD93 Advantage
- 1.Fomular EPDM with UV protector and strengthen ABS. Aquasust Tube Diffuser pipe is made from UV protector and strengthen ABS material, which can make the tube diffuser durable.
2.Fomular EPDM import from Lanxess Germany.Aquasust Diffuser use the fomular EPDM wich UV protector which import from Lanxess Germany. This kind of EPDM with less plasticizer.
3.Low pressure loss and longer duly life.The Wall thickness of the Membrane is 1.8 to 2.0mm ,which is not too thick and too thinner.
4.Quality Control.Strictly Quality Control when producing, then make each tube diffuser Consistent quality which can make you total Aeration tank easy Maintain 5.Double Check valve
6.Non tearing & non clogging --shaped slits.
Tube Diffuser AS-TD93 Application
1.Municipal Wastewater Treatment: Used in activated sludge processes to provide efficient oxygen transfer for biological treatment.
2.Industrial Wastewater Treatment: Applied in various industries such as food and beverage, pulp and paper, and chemical processing for treating industrial effluents.
3.Aquaculture: Utilized in fish farming and aquaculture to maintain adequate oxygen levels in water for healthy aquatic life.
4.Surface Water Treatment: Employed in lakes, ponds, and reservoirs to prevent stagnation and improve water quality through aeration.
5.Aerobic Digestion: Used in sludge treatment processes to enhance the breakdown of organic matter in aerobic digesters.
6.Nutrient Removal: Employed in biological nutrient removal processes to support nitrification and denitrification by supplying adequate oxygen.
2.Industrial Wastewater Treatment: Applied in various industries such as food and beverage, pulp and paper, and chemical processing for treating industrial effluents.
3.Aquaculture: Utilized in fish farming and aquaculture to maintain adequate oxygen levels in water for healthy aquatic life.
4.Surface Water Treatment: Employed in lakes, ponds, and reservoirs to prevent stagnation and improve water quality through aeration.
5.Aerobic Digestion: Used in sludge treatment processes to enhance the breakdown of organic matter in aerobic digesters.
6.Nutrient Removal: Employed in biological nutrient removal processes to support nitrification and denitrification by supplying adequate oxygen.
Parameter
|
Item number
|
AS-TD63
|
AS-TD93
|
AS-TD113 |
Bubble type | Fine Bubble | Fine Bubble | Fine Bubble |
Tube diameter(mm) | 63 | 93 | 113 |
Material | Special Formula EPDM with UV Protector import from Germany /Silicon Membrane | ||
Tube material :Acrylonitrile-butadiene-styrene with UV Protector (ABS) | |||
Length | 500/750/1000mm | ||
Connector | 3/4NPT | ||
Flow range(m³/h) | 2-14 | 5-20 | 6-28 |
Bubble Size(mm) | 1-2 | 1-2 | 1-2 |
Service Area(m²) | 0.75-2.5 | 1.0-3.0 | 1.5-2.5 |
