Customized Tube Diffuser AS-TD63 | 2"Fine Bubble Tube Diffuser High Anti-clogging Performance and Corrosion resistance | For Municipal & Hospital Wastewater Secondary Treatment
Customized Tube Diffuser AS-TD63 | 2"Fine Bubble Tube Diffuser High Anti-clogging Performance and Corrosion resistance | For  Municipal & Hospital Wastewater Secondary Treatment
Customized Tube Diffuser AS-TD63 | 2"Fine Bubble Tube Diffuser High Anti-clogging Performance and Corrosion resistance | For  Municipal & Hospital Wastewater Secondary Treatment
Price
US $8-10
Model
AS-TD63
MOQ
100 piece

Item specifics

Membrane Material
EDPM, Rubber,Silica Gel
Connector
3/4"NPT male thread
Length
500/750/1000mm

Review

Description

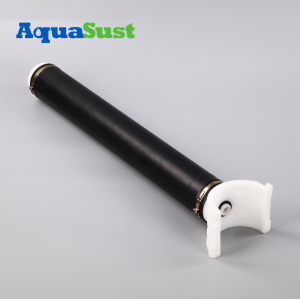

Tube Diffuser AS-TD63 Introduction

Category: Biochemical Tank -Aeration Diffuser
Band: AquaSust

Model: AS-TD63

Size: 63mm

Bubble type: Fine bubble

Material: EDPM, Rubber, Silica Gel


tube diffuser for Municipal & Hospital Wastewater Secondary Treatment

Tube Diffuser AS-TD63 Advantage

The AS-TD63 Fine Bubble Tube Diffuser is an indispensable component in water treatment facilities due to its high resistance to clogging and excellent corrosion resistance. The AS-TD63 Tube Diffuser produces extremely fine bubbles that dramatically increase the dissolution efficiency of oxygen in the water, resulting in improved treatment results. The AS-TD63 Tube Diffusers high resistance to clogging ensures stable operation even in water with a high content of suspended solids, eliminating the need for frequent maintenance and downtime due to clogging, and its excellent corrosion resistance allows it to be used for long periods of time in a wide range of environments, regardless of whether the water is acidic or alkaline. These features make the AS-TD63 Fine Bubble Tube Diffuser a highly efficient solution for the water treatment industry, saving energy and improving treatment efficiency while significantly reducing operating costs.

Tube Diffuser AS-TD63  Application

In the field of secondary treatment of municipal and hospital wastewater, AS-TD63 tube diffuser plays a key role, especially in the aeration process. These devices greatly increase the dissolution rate of oxygen by providing fine and uniform bubbles, thus promoting the activity of aerobic microorganisms and accelerating the biological decomposition of organic matter. In municipal wastewater treatment, AS-TD63 tube diffuser effectively reduces  BOD, COD ,TSS, improves the quality of the effluent and ensures that it meets the environmental discharge standards. In hospital wastewater treatment, where wastewater contains complex components such as pathogens and pharmaceutical residues, the AS-TD63 tube diffuser not only helps to remove organic pollutants, but also controls the concentration of pathogens, reducing environmental and public health risks. The AS-TD63 tube diffuser's highly efficient oxygen transfer capability, excellent clogging resistance, and corrosion resistance,  make it an excellent choice in Increased treatment efficiency and reduced operating costs make the AS-TD63 tube diffuser an indispensable technology choice for municipal and hospital wastewater treatment.
Parameter
Item number
AS-TD63
AS-TD93
AS-TD113
Bubble type
Fine Bubble
Fine Bubble
Fine Bubble
Tube diameter(mm)
63
93
113
Material
Special Formula EPDM with UV Protector import from Germany /Silicon Membrane
Tube material :Acrylonitrile-butadiene-styrene with UV Protector (ABS)
Length
500/750/1000mm
Connector
3/4NPT
Flow range(m³/h)
2-14
5-20
6-28
Bubble Size(mm)
1-2
1-2
1-2
Service Area(m²)
0.75-2.5
1.0-3.0
1.5-2.5
