High-Efficiency, Low-Consumption, Low-Noise Rotary Blowers for Electronic Industry Wastewater Treatment

Model: AS-SL7018

Review

Description

HC-S Series Structure And Working Principle

Blower pressure range: 0.1-0.5 kgf/cm2

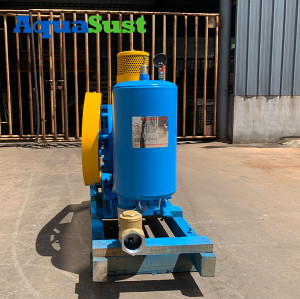

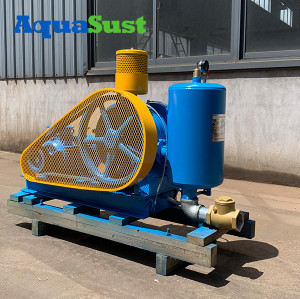

The rotary blower has a compact structure and is mainly composed of the following six parts: motor, air filter, blower main unit,air chamber, and base (cum oil tank). and oil drip nozzle.

The blower operates eccentrically with an offset rotor in the cylinder, and the volume change between the blades in the rotor groove draws in. compresses, and exhales air. During operation, the pressure difference of the blower is utilized to automatically send lubricant to the drip nozzle. which drains into the cylinder to reduce friction and noise, and at the same time reduces the return flow of gas inside the cylinder.

Product Features

1. Low noise, large air volume, energy saving, smooth operation, easy installation

2. Resistant to load changes, stable airflow, air chamber attached, smooth air dispersion.

3. Excellent material, ingenious structure, excellent performance.

Rotary Blower Electronic in Industry Wastewater Treatment Applications:

1. Biological treatment system

In aerobic biological treatment systems, such as activated sludge, biofilters, MBRs, etc., the rotary fan electronic control system ensures that there is sufficient dissolved oxygen in the system to promote microbial growth and degradation of organic matter by providing precise control of airflow.

2. Anaerobic Treatment System

In anaerobic treatment systems, although the oxygen demand is low, the electronic control system can accurately regulate the airflow to ensure the stable operation of the system and to avoid excessive gas affecting the treatment effect.

3.Air flotation device

In an air flotation unit, the rotary fan electronic control system helps to remove suspended solids and oils from the wastewater by providing a stable airflow, improving treatment efficiency and effluent quality.

4. Aeration and homogenization tanks

In aeration and homogenization tanks, the rotary fan electronic control system provides precise control of the airflow to ensure the concentration and uniform mixing of dissolved oxygen in the water column, preventing the formation of deposits and dead zones and improving the overall treatment effect.

5. Sludge treatment

During sludge treatment, the electronic control system promotes aerobic stabilization and dewatering of the sludge by regulating the airflow, improving the treatment effect and reducing the volume and cost of sludge treatment.
