Price
US $8-10
Model
AS-DD270
MOQ
100 piece

Item specifics

Membrane Material
EDPM, Rubber,Silica Gel
Connector
3/4"NPT male thread
Plate Color
Black, White, Gray, Black

Review

Description

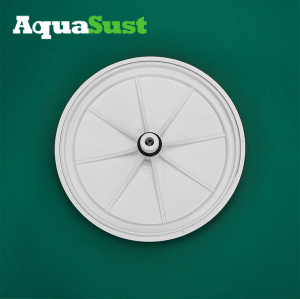

Disc Diffuser AS-DD270 Introduction

Category: Biochemical Tank -  Aeration Diffuser
Brand: AquaSust

Model: AS-DD270

Size: 9 inch

Material: EDPM, Rubber, Silica Gel


Disc diffuser for Textile And Dyeing Wastewater Secondary Treatment

Disc Diffuser AS-DD270 Advantage

Designed to provide uniform bubble distribution and high aeration efficiency, our 9" Fine Bubble Aeration ensures optimal performance in wastewater treatment systems. By utilizing advanced technology and high-quality materials, this aerator produces fine, uniform bubbles. The formation of these fine bubbles helps to increase oxygen dissolution rates and transfer efficiency, providing a uniform supply of oxygen throughout the treatment tank. This not only accelerates microbial metabolic processes and improves the removal efficiency of organic pollutants, but also significantly reduces energy consumption as the fine bubbles provide higher oxygen transfer efficiency.


Disc Diffuser AS-DD270  Food Processing Wastewater Treatment Application

1. Increase dissolved oxygen: disc diffuser effectively transfers oxygen from the air to the wastewater by generating a large number of tiny bubbles. These tiny bubbles increase the dissolution rate of oxygen, making dissolved oxygen evenly distributed in the water body, which helps the growth and metabolism of microorganisms.

2. Promote biodegradation: food processing wastewater contains a large amount of organic matter, such as sugars, proteins and fats, etc. The dissolved oxygen provided by the disc diffuser is necessary for the microorganisms to decompose these organic substances. Through the biodegradation process, the microorganisms convert organic pollutants into harmless substances, such as water and carbon dioxide.

3. Stirring and preventing sludge deposition: The bubbles produced by the disc diffuser during aeration also act as a stirring agent, which prevents the deposition and hardening of the sludge at the bottom. This stirring action helps to keep the sludge active and improves treatment efficiency.

4. Energy saving and efficiency: Compared to other aeration equipment, the disc diffuser is more energy efficient due to its higher oxygen transfer efficiency. This efficient oxygen transfer means that good treatment results can be achieved while consuming less energy.

5. Highly adaptable: disc diffusers are suitable for food processing wastewater treatment facilities of all sizes. They can be installed in reactors of varying depths and are adaptable with easy maintenance and replacement.
Parameter
No.
Item No.
AS-DD270
1
Bubble Type
Fine Bubble
2
Plate Diameter
270mm
3
Membrane Diameter
9 inch
4
Membrane Material
EDPM, Rubber,Silica Gel
5
Base Material
ABS, ABS + Glass Fibre,PP PP+ Glass Fibre
6
Connector
3/4"NPT male thread
7
Weight
0.62KG
8
Plate Color
Black, White, Gray, Black
9
Membrane Thickness
2mm
10
Bubble Size
1-2mm
11
Design Flow
3-4 m3/h
12
Flow Range
1-8 m3/h
13
SOTE
≥38%
14
SOTR
≥0.45kg O2/h
15
SAE
≥8.9kg O2/kw*h
16
Headloss
1500-4300Pa
17
Service Area
0.25-1.0 m2/pcs
18
Service Life
> 7years
