Sludge Dewatering Screw Press AS-NH202 |Customized Sludge Dewatering Screw Press For Landfill Leachate Treatment
Sludge Dewatering Screw Press AS-NH202 |Customized Sludge Dewatering Screw Press For Landfill Leachate Treatment
Sludge Dewatering Screw Press AS-NH202 |Customized Sludge Dewatering Screw Press For Landfill Leachate Treatment
Sludge Dewatering Screw Press AS-NH202 |Customized Sludge Dewatering Screw Press For Landfill Leachate Treatment
Sludge Dewatering Screw Press AS-NH202 |Customized Sludge Dewatering Screw Press For Landfill Leachate Treatment
Sludge Dewatering Screw Press AS-NH202 |Customized Sludge Dewatering Screw Press For Landfill Leachate Treatment
Model
AS-NH202

Review

Description

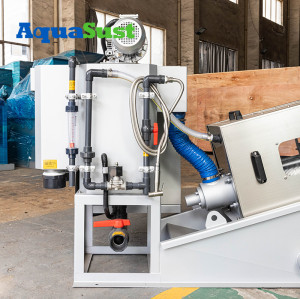

Dewatering Machine Screw Press

AS-NH202 Selection

(1) AS-NH202 Sludge pump, dosing pump selection reference:

Processing capacity                             Sludge concentration
30[kg-DS/h]                                         10000[mg/L]
30[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=3m3/h
Treatment volume:30[kg-DS/h]
Unit conversion:1000[g/kg]
Sludge concentration:1000[mg/L
Unit conversion: 1000[mg/g])
Sludge flow rate:3m*h

(2) 30[kg-DS/h]x0.3%x1000x1000[g/kg]= 90L/h
Treatment volume:30[kg-DS/h]
Agent addition rate:0.3%
Dilution rate:1000
Unit conversion:1000[g/kg]
Agent flow rate:90L/h
(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.

Dewatering Machine Screw Press AS-NH202 Parameters

AS-NH202 SELECTION PARAMETERS
Processing capacity
18~30(DS-kg/h)
Electricity consumption
1.1kw/h
Flushing water consumption
32L/h
Polymer flocculant addition rate
For DS/T~0.3%
Maintenance management frequency
5min/day
Water supply pressure
0.1~0.2MPa
Mud cake discharge distance from the ground
400mm
Mechanical size
L2000*V950*H1450(mm)
Net weight
515kg
Operating weight
680kg
