Dewatering Machine Screw Press AS-NH131 | Customized Dewatering Machine Screw Press for lmicipal Wastewater Treatment
- Model
- AS-NH131
Review
Description

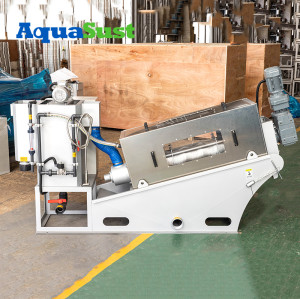

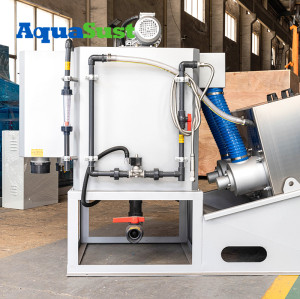

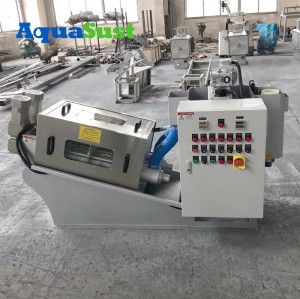

Dewatering Machine Screw Press
AS-NH131 Selection
(1) AS-NH131 Sludge pump, dosing pump selection reference:
Processing capacity Sludge concentration
10[kg-DS/h] 10000[mg/L]
10[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=1m3/h
Treatment volume:10[kg-DS/h]
Unit conversion:1000[g/kg]
Sludge concentration:1000[mg/L
Unit conversion: 1000[mg/g])
Sludge flow rate:1m*h
(2) 10[kg-DS/h]x0.3%x1000x1000[g/kg]= 30L/h
Treatment volume:10[kg-DS/h]
Agent addition rate:0.3%
Dilution rate:1000
Unit conversion:1000[g/kg]
Agent flow rate:30L/h
(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.
Dewatering Machine Screw Press AS-NH131 Parameters
|
AS-NH131 SELECTION PARAMETERS
|
|
|
Processing capacity
|
6-10(D5-kg/h)
|
|
Electricity consumption
|
0.2kw/h
|
|
Flushing water consumption
|
24L/h
|
Polymer flocculant addition rate | For DS/T~0.3% |
Maintenance management frequency | 5min/day |
Water supply pressure | 0.1~0.2MPa |
Mud cake discharge distance from the ground | 280mm |
Mechanical size | L2000*V700*H1060(mm) |
Net weight | 182kg |
Operating weight | 280kg |
