Supplier Tube Settler AS-80PP | 80mm Lamella Settler for Easy Installation and Maintenance | For Recirculating Aquaculture Systems (RAS)
- Price
- US $27-35
- Model
- AS-80PP
- MOQ
- 10 cubic meter
Item specifics
- Material
- 100% New PP with UV protector
- Color
- Blue or white
- Service Life
- 5 to 10 years
Review
Description

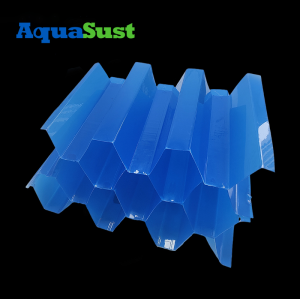

Tube Diffuser AS-80PP Introduction
Category: Complementary Products - Tube Settler
Band: AquaSust
Model: AS-80PP
Size: 80mm
Gravity: 0.92g/cm3 Slope: 60°
Tube Settler AS-80PP Advantage
Designed with a focus on easy installation and maintenance, the AS-80PP tube settler provides an efficient and convenient solution for water treatment projects. With its unique laminated plate structure, this settler not only optimizes floor space and improves settling efficiency, but also simplifies the installation process. The laminated design allows for a significant increase in the effective settling area per unit area, resulting in faster settling rates and improved water quality when treating large volumes of wastewater.
Tube Settler AS-80PP Application
In recirculating aquaculture systems (RAS), the AS-80PP tube settler, with its optimized design and efficient solids removal capacity, is a key technology for maintaining water quality and promoting aquatic animal health. With an inclined pipe configuration, it significantly increases the settling area and effectively removes fish waste, feed residues and other suspended particles from the water, thereby improving settling efficiency and reducing system energy consumption. In addition, the design reduces the need for chemical flocculants, further reducing operating costs and mitigating ecological impacts. The application of tube settlers not only ensures clean and stable aquaculture water, but also provides an environmentally friendly and cost-effective water treatment solution for the aquaculture industry, supporting the industry's move towards sustainability.
Parameter
Model |
A
|
B
|
C | D | Material | Service Life | Surface Area |
AS-25PP | 30MM | 20MM | <20MM | ⌀25MM | pp+uv | 5-10Year | >95m2/m3 |
AS-35PP | 40MM | 20MM | <20MM | ⌀35MM | pp+uv | 5-10Year | >95m2/m3 |
AS-50PP | 60MM | 28MM | <30MM | ⌀50MM | pp+uv | 5-10Year | >95m2/m3 |
AS-80PP | 80MM | 35MM | <45MM | ⌀80MM | pp+uv | 5-10Year | >95m2/m3 |
