RAS System Special s Shape AS-MBBR78 Media For Recirculating Aquaculture Systems
- Price
- US $150-160
- Model
- AS-MBBR 78S
- MOQ
- 10 cubic meter
Item specifics
- Membrane-Forming Time
- 3-15days
- Applicable Temperature
- 5-60℃
- Life Span
- More than 20 years
Review
Description

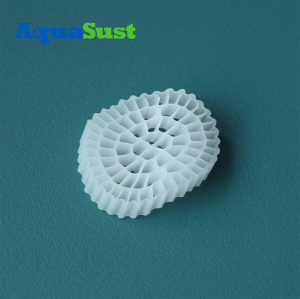

MBBR Media AS-MBBR 78S Introduction
Category: Biochemical Tank - MBBR Media
Band: AquaSust
Model: AS-MBBR 78S
Size: Φ25*4mm
Material: 100% White Virgin HDPE
Weight: 125KG/CBM
Densilty:0.96-0.98g/cm3
Weight: 125KG/CBM
Surface Area:>1600m2/m3
Packing Numbers:>260000pcs/m³
Dosing Ratio: 15-65%
Membrane-Forming Time:3-15days
Applicable Temperature:5-60℃
Nitrification Effciency :400-1200gNH4 N/M³.d
BOD5 Efciency:2000-10000g BOD5/M³.d
COD5 Effciency:2000-15000g COD5/M³.d
Applicable Temperature:5-60°C
Life-Span:>20 years
MBBR Media AS-MBBR 78S offers several advantages
1. Better Water Treatment Efficiency:
The unique design and material composition of the AS-MBBR78 media enhance the overall efficiency of water treatment processes.
The increased surface area supports a higher density of microorganisms, leading to more effective breakdown of organic matter and nutrients.
This results in improved water quality, which is crucial for the health and growth of aquatic organisms in RAS systems.
2. Better Fluidization Due to Unique S Shape:
The special S shape of the AS-MBBR78 media promotes better fluidization within the reactor.
This design ensures more uniform distribution and movement of the media, optimizing contact time between the biofilm and the water.
Improved fluidization enhances the efficiency of biological processes, such as nitrification and organic matter decomposition.
3. Not Easy to Stick to the Walls of Aerobic and Anaerobic Tanks:
The media's design and material properties prevent it from sticking to the walls of both aerobic and anaerobic tanks.
This non-sticking feature helps maintain consistent and efficient operation of the reactor, reducing maintenance needs and preventing the formation of dead zones.
4. Lower Weight per Square Meter Surface:
The AS-MBBR78 media is designed to be lightweight, which reduces the overall weight per square meter of surface area.
This lightweight nature translates to lower energy consumption, as less energy is required to achieve and maintain fluidization.
Reduced energy usage leads to lower running costs, making the system more cost-effective and energy-efficient.
MBBR Media AS-MBBR 78S In Recirculating Aquaculture Systems Application
AS-MBBR 78S Media is specifically designed to enhance the biological filtration process in RAS. Here are the key aspects of its application:
1.Biofiltration:
The media provides a large surface area for the growth of nitrifying bacteria, which are essential for the conversion of ammonia to nitrite and nitrite to nitrate.
This biofilm-based treatment process ensures efficient removal of toxic ammonia and nitrites from the water, maintaining a safe environment for aquatic organisms.
2.Water Quality Management:
The use of AS-MBBR 78S helps in maintaining optimal water quality by reducing organic load and stabilizing the nitrogen cycle.
It helps in controlling the levels of dissolved organic carbon and other pollutants, ensuring the health of fish and other aquatic species.
3.High Efficiency:
The media enhances the oxygen transfer and mixing within the bioreactor, promoting efficient biological processes.
It supports high stocking densities by providing efficient waste degradation and nutrient cycling.
4.Flexibility and Adaptability:
AS-MBBR 78S can be integrated into existing RAS systems or used in the design of new systems.
It is suitable for various types of aquaculture, including freshwater and marine species.
5.Durability and Maintenance:
Made from robust materials, AS-MBBR 78S media is resistant to physical and chemical wear, ensuring long-term performance.
It requires minimal maintenance, reducing operational costs and efforts.
Parameter
|
Mbbr Media（Type）
|
Diameter * Height（mm）
|
Surface Area（m2 / m3） |
Inside Void Size （mm） | Number of units per m3 |
|
AS-MBBR 04
|
11 * 7
|
＞900 |
5-6 | 940K |
AS-MBBR 05 | ＞1000 | 980K | ||
AS-MBBR 06 | 16*10 | ＞800 | 7-8 | 260K |
AS-MBBR 08 | 10 * 5 | ＞3500 | 15.4M | |
AS-MBBR 19 | 25 * 12 | ＞650 | 118K | |
AS-MBBR 37 | ＞800 | 5-6 | ||
AS-MBBR 38 | 25 * 10 | |||
AS-MBBR 40 | 15 * 15 | ＞900 | Unique | 230K |
AS-MBBR 61 | 25 * 4 | ＞1250 | 260K | |
AS-MBBR 64 | ＞1200 | |||
AS-MBBR 78 | ＞1600 |
