Low Energy Consumption Ultra high speed turbo blower for Food Processing Wastewater Treatment

Model: AS-AR

Item specifics

After-sales service: Support

Guarantee period: 3 Years

Shipment packing: Custom

Brand: AquaSust

Rated Voltage: 220V

Power Source: Electric Blower

Color: Customized Color

Review

Description

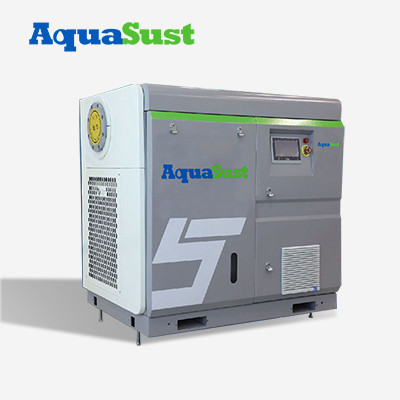

UItra High Speed Turbo Blower

The UItra High Speed Turbo Blower is a single stage centrifugal blower, which does not need a gearbox, accelerator and coupling, and is powered by a high speed Permanent Magnet Synchronous Motor(PMSM) is directly driven, while the motor uses a variable frequency drive(VFD) for speed regulation. The blower IMPELLER is directly connected to the motor. While the rotating shaft is suspended on the active AIR BEARINGS. Because there is no physical contact and no lubricating oil system, so with the characteristics of high efficiency, energy saving, low noise, reliable operation and long-term maintenance.

Core Technologies

Imorted Host

1. Adopting hydrogen fuel cell vehicle-grade core host, the performance is far better than traditional air suspension products.

2. No fear of frequent start/stop, no fear of sudden emergency stop, no fear of high altitude operation, no fear of low or high temperature operation.

3. Resistant to shock, vibration, high and low temperatures.

4. Oil-free, low noise, high efficiency, super energy saving

Ternary Flow High-Efficiency Impeller

1. High-strength aviation aluminum AL7075 and other materials are selected to ensure excellent wear resistance and deformation resistance, with a service life of more than 30 years.

2. With strong anti-surge stability and pressure-bearing capacity, the impeller is directly connected to the motor to realize 100% power transfer efficiency.

3. Characterized by long-term stability, pressure-bearing capacity and high efficiency, it is suitable for application scenarios that require high performance and reliability.

Aluminium alloy casting worm shell

1. Lightweight: Aluminum alloy has low density and good strength, which makes the casting of the worms shell has the characteristics of lightweight, help to reduce the overall weight of the equipment, improve the convenience of handling and installation.

2. Excellent thermal conductivity: Aluminum uses high-quality aluminum alloy to make the entire body, equipped with a good heat dissipation system, each connection point is designed according to the excellent heat dissipation effect, to ensure that the heat dissipation effect is more concentrated, and prolong the service life.

Ultra high speed turbo blower in Food Processing Wastewater Treatment Application

1. Aerobic biological treatment

In an aerobic biological treatment unit for food processing wastewater, an ultra-high speed turbo blower ensures that there is sufficient dissolved oxygen in the system by providing a highly efficient airflow, which promotes the growth of aerobic microorganisms and the degradation of organic matter.

2. Membrane Bioreactor (MBR)

In MBR systems, the airflow provided by the ultra-high-speed turbo blower not only helps oxygen transfer, but also reduces membrane contamination, extends membrane life, and improves the treatment efficiency of the MBR system.

3. Aeration tank

In the aeration tank, the ultra-high-speed turbo blower improves the oxygen transfer efficiency by generating uniform air bubbles, ensuring that organic matter and pollutants in the wastewater are fully degraded and improving the treatment effect of the aeration tank.

4.Sludge treatment

During sludge treatment, the ultra-high-speed turbo blower promotes the aerobic stabilization process of the sludge by providing efficient airflow, reducing the volume of sludge and the content of harmful substances, and improving the treatment effect of the sludge.

5. Wastewater homogenization tank

In the wastewater homogenization tank, ultra-high-speed turbo blowers are used to maintain uniform mixing of wastewater, prevent precipitation of suspended solids, and improve the treatment efficiency of subsequent treatment units.
