Plate Aeration Diffuser for Aquaculture Wastewater Treatment
Plate Aeration Diffuser for Aquaculture Wastewater Treatment
Model
AS-PD660

Review

Description

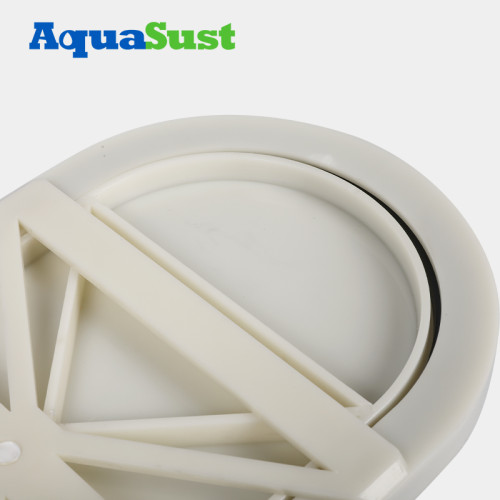

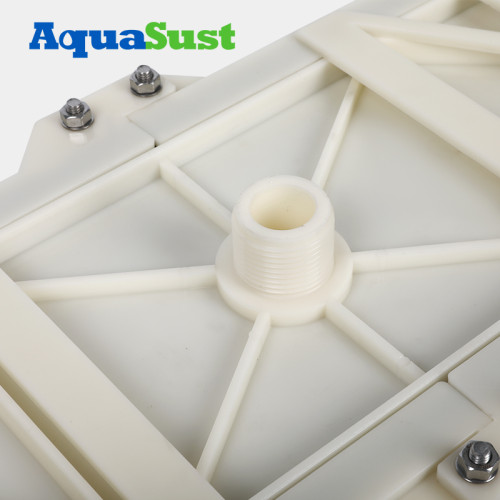

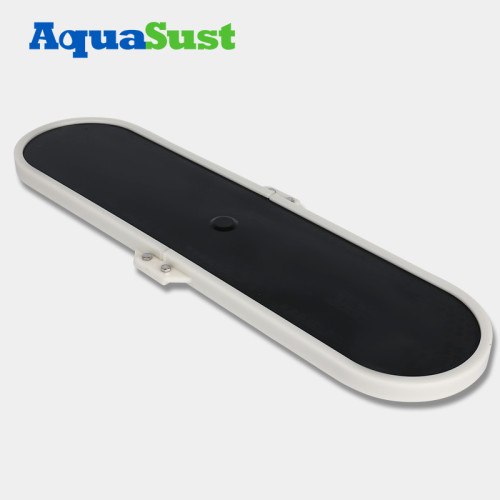

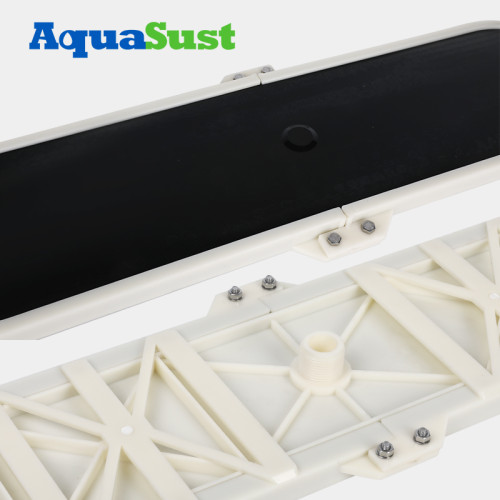

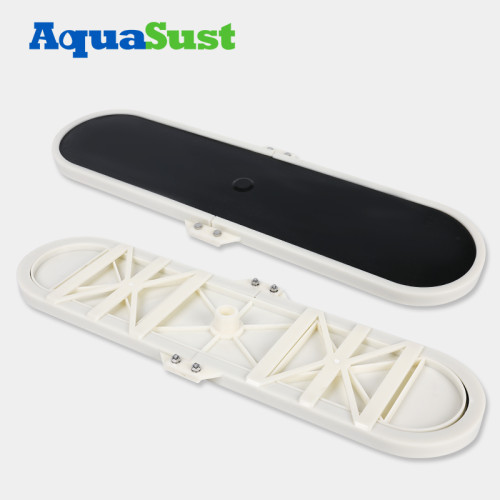

Plate Aeration Diffuser
The unique structure of this aerator design ensures that the system can maintain low energy consumption and high efficiency. When the blower is working, the bubbles produced by the aerator are uniform, forming a good lotus effect. The support plate of the microporous aerator is made of special material rubber and high quality plastic, which achieves a double balance of strength and toughness. The film is placed flat on the pallet for one pressurized film punching. Its unique opening method ensures an even distribution of bubbles produced during blower operation, achieving excellent results. Advantages include maintaining a constant oxygen transfer rate for a wide range of operating conditions and can be used in intermittent or continuous aeration systems. It features high oxygen utilization, high reliability, excellent waterproofing, and long life.

Plate Aeration Diffuser Performance Parameters

Item Number

PD660

PD1100

Membrane Material

EPDM/Silicon

EPDM/Silicon

Membrane Thickness

1.8-2.0mm

1.8-2.0mm

Bubble Diameter

0.8-1.9mm

0.8-1.9mm

Standard Airflow

6m3/h

10m3/h

Aeration Range

1-16m3/h

4-32m3/h

Resistance Loss

2.0-4.3kPa

2.0-4.3kPa

Effective Service Area

0.5-2 .5m2

1.0-4.0m2

Plate Aeration Diffuser advantage

1. The aerator system with unique design structure effectively reduces energy consumption, improves efficiency and provides a reliable guarantee for gas transmission.

2. During the operation of the blower, the aerator produces bubbles uniformly, presenting a beautiful lotus effect, promoting the dissolution of oxygen in the water and the biodegradation process.

3. This aeration method is not only suitable for intermittent operation system, but also can be easily adapted to the continuous aeration system, flexible to meet the needs of different processes.

4. Including good sealing, easy and fast installation, and easy maintenance, for the reliable operation of the system provides reliable technical support.

Plate Aeration Diffuser in Aquaculture Wastewater Treatment Application

Aquaculture wastewater usually contains a large amount of organic matter, ammonia nitrogen and suspended solids and other pollutants. Plate aerators play an important role in aquaculture wastewater treatment through efficient oxygen diffusion and uniform bubble distribution:

1. Organic matter removal: by increasing the concentration of dissolved oxygen and promoting the growth and metabolism of aerobic microorganisms, it effectively removes organic pollutants in wastewater.

2. Ammonia nitrogen removal: Enhance the activity of nitrifying bacteria, accelerate the oxidation process of ammonia nitrogen, reduce the concentration of ammonia nitrogen in wastewater.

3. Suspended matter treatment: help to separate and remove suspended matter in wastewater through the rising effect of air bubbles, purify water quality.
