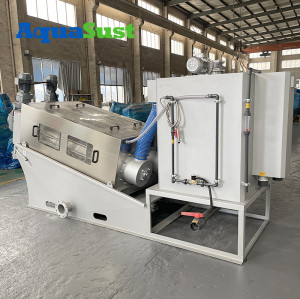

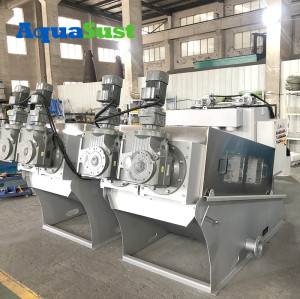

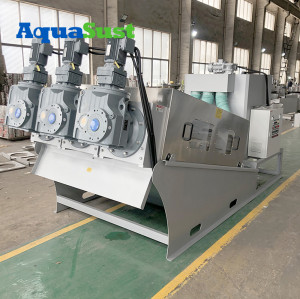

Multi-Plate Screw Press Sludge Dewatering AS-NH401 |Manufacturing Small Screw Press Dewatering For Food And Beverage Industry Wastewater Treatment
Multi-Plate Screw Press Sludge Dewatering AS-NH401 |Manufacturing Small Screw Press Dewatering For Food And Beverage Industry Wastewater Treatment
Multi-Plate Screw Press Sludge Dewatering AS-NH401 |Manufacturing Small Screw Press Dewatering For Food And Beverage Industry Wastewater Treatment
Multi-Plate Screw Press Sludge Dewatering AS-NH401 |Manufacturing Small Screw Press Dewatering For Food And Beverage Industry Wastewater Treatment
Multi-Plate Screw Press Sludge Dewatering AS-NH401 |Manufacturing Small Screw Press Dewatering For Food And Beverage Industry Wastewater Treatment
Multi-Plate Screw Press Sludge Dewatering AS-NH401 |Manufacturing Small Screw Press Dewatering For Food And Beverage Industry Wastewater Treatment
Model
AS-NH401

Review

Description

Dewatering Machine Screw Press

AS-NH401 Selection

(1) AS-NH401 Sludge pump, dosing pump selection reference:

Processing capacity                             Sludge concentration
150[kg-DS/h]                                         10000[mg/L]
150[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=15m3/h
Treatment volume:150[kg-DS/h]
Unit conversion:1000[g/kg]
Sludge concentration:1000[mg/L
Unit conversion: 1000[mg/g])
Sludge flow rate:15m*h

(2)150[kg-DS/h]x0.3%x1000x1000[g/kg]= 450L/h
Treatment volume:150[kg-DS/h]
Agent addition rate:0.3%
Dilution rate:1000
Unit conversion:1000[g/kg]
Agent flow rate:450L/h
(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.

Dewatering Machine Screw Press AS-NH401 Parameters

AS-NH401 SELECTION PARAMETERS
Processing capacity
90~150(DS-kg/h)
Electricity consumption
2.25kw/h
Flushing water consumption
100L/h
Polymer flocculant addition rate
For DS/T~0.3%
Maintenance management frequency
5min/day
Water supply pressure
0.1~0.2MPa
Mud cake discharge distance from the ground
700mm
Mechanical size
L4500*V1000*H2100(mm)
Net weight
1085kg
Operating weight
2400kg
