Mobile Sludge Dewatering Units Screw Press AS-NH302 |Manufacturing Cassava Dewatering Machine Screw Press For Food And Beverage Industry Wastewater Treatment
- Model
- AS-NH302
Review
Description

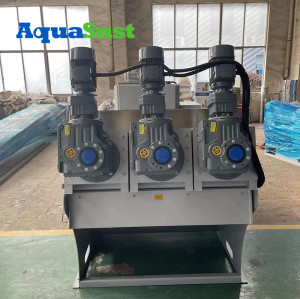

Dewatering Machine Screw Press
AS-NH302 Selection
(1) AS-NH302 Sludge pump, dosing pump selection reference:
Processing capacity Sludge concentration
100[kg-DS/h] 10000[mg/L]
100[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=10m3/h
Treatment volume:100[kg-DS/h]
Unit conversion:1000[g/kg]
Sludge concentration:1000[mg/L
Unit conversion: 1000[mg/g])
Sludge flow rate:10m*h
(2) 100[kg-DS/h]x0.3%x1000x1000[g/kg]= 300L/h
Treatment volume:100[kg-DS/h]
Agent addition rate:0.3%
Dilution rate:1000
Unit conversion:1000[g/kg]
Agent flow rate:300L/h
(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.
Dewatering Machine Screw Press AS-NH302 Parameters
|
AS-NH302 SELECTION PARAMETERS
|
|
|
Processing capacity
|
60~100(DS-kg/h)
|
|
Electricity consumption
|
2.25kw/h
|
|
Flushing water consumption
|
80L/h
|
Polymer flocculant addition rate | For DS/T~0.3% |
Maintenance management frequency | 5min/day |
Water supply pressure | 0.1~0.2MPa |
Mud cake discharge distance from the ground | 630mm |
Mechanical size | L3605*V1060*H1780(mm) |
Net weight | 968kg |
Operating weight | 2030kg |
